Технические характеристики
ПроизводительFANUC

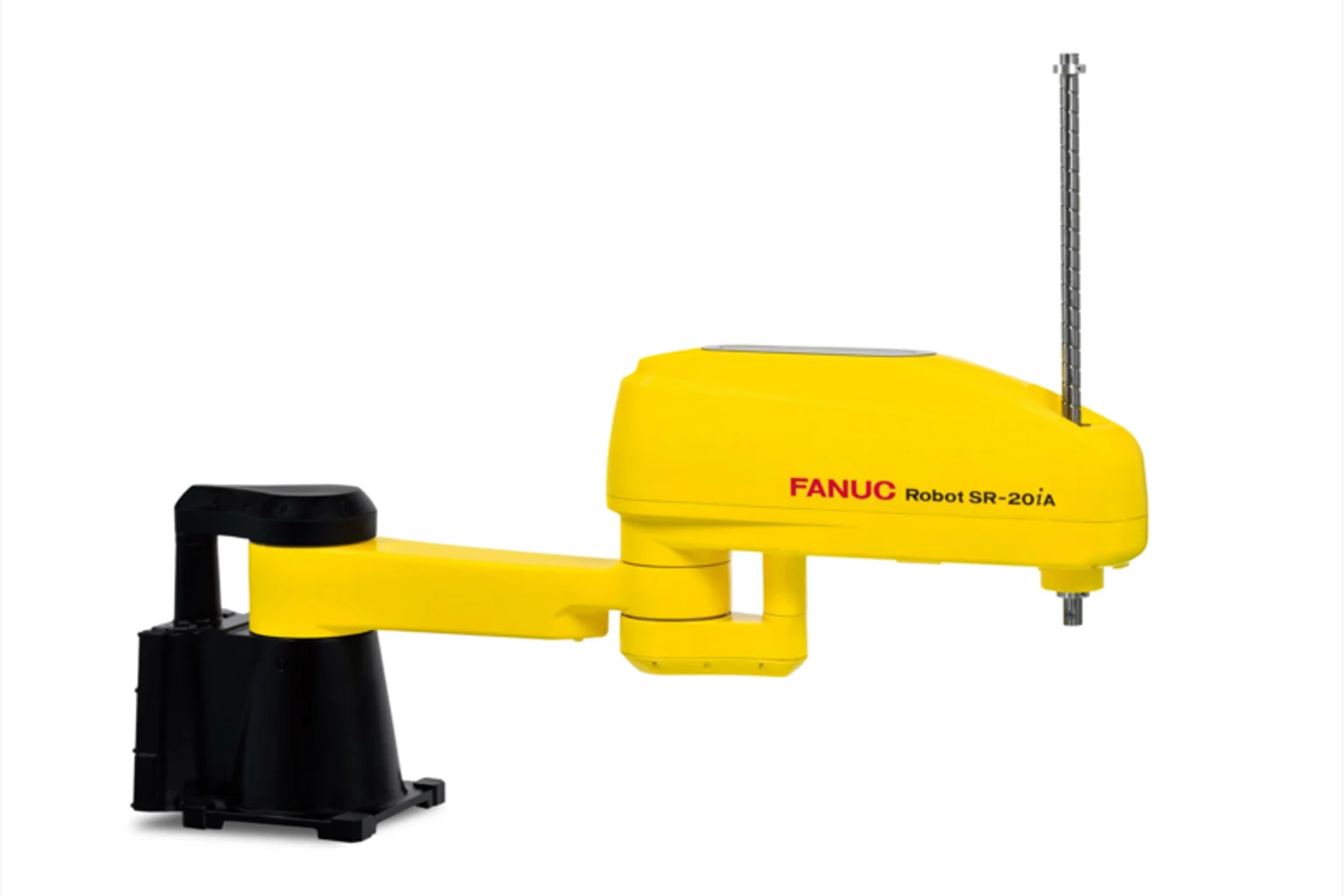

МодельFANUC SR-20iA
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1290
Motion range — J2290 degrees
Motion range — J3450 degrees
Motion range — J41440 degrees
Maximum speed — J1440 (°/s)
Maximum speed — J2500 (°/s)
Maximum speed — J32800 (°/s)
Maximum speed — J41700
Electrical connections — Value (V)200-230 V
Electrical connections — Average power consumption0.45 kW
Integrated Services — Integrated signals on upper arm In/Out4 RI / solenoid valve 2
Integrated Services — Integrated air supply2
Environment — Acoustic noise level70 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload20 kg
General attributes — Robot Reach1100 mm
General attributes — Axes4
General attributes — Repeatability (ISO9283)±0.02 mm
General attributes — Mechanical weight64 kg
General attributes — J4 Moment/ 0.45 (Nm)/Inertia (kgm²)
General attributes — J5 Moment(Nm)/Inertia (kgm²)
General attributes — J6 Moment(Nm)/Inertia (kgm²)
General attributes — Max. pushdown force250 N
General attributes — Robot footprint280 x 360 (497)
Protection — Body standard/optionalIP20/IP65
Protection — Wrist & J3 arm standard/optionalIP20/IP65
Ценапо запросу
