Технические характеристики
ПроизводительFANUC

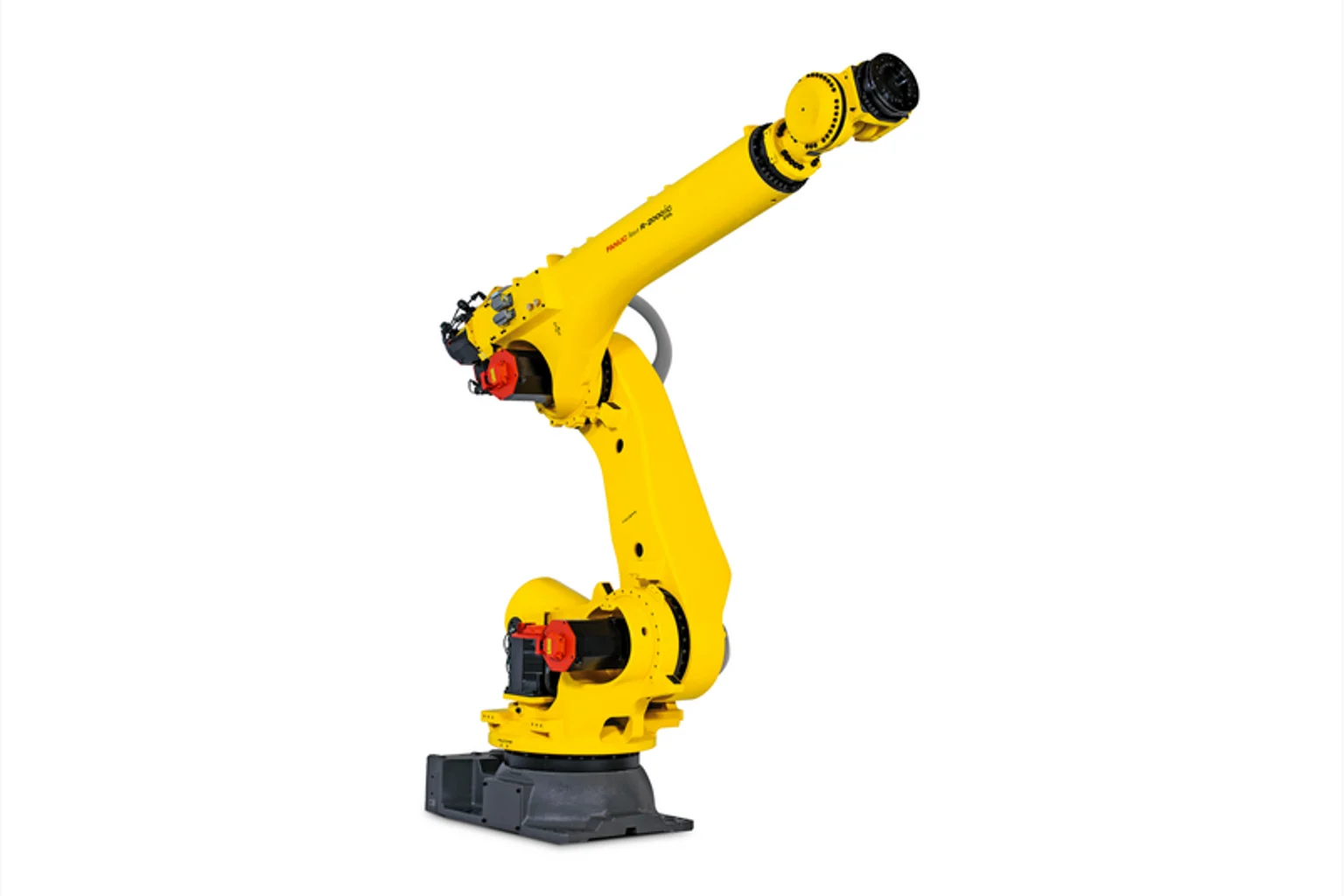

МодельFANUC R-2000iC/210L
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1370
Motion range — J2136 degrees
Motion range — J3301 degrees
Motion range — J4720 degrees
Motion range — J5250
Motion range — J6720
Maximum speed — J1105 (°/s)
Maximum speed — J285 (°/s)
Maximum speed — J385 (°/s)
Maximum speed — J4120
Maximum speed — J5120 (°/s)
Maximum speed — J6200 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption2.5 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply2
Environment — Acoustic noise level70.5 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload210 kg
General attributes — Robot Reach3100 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.05 mm
General attributes — Mechanical weight1350 kg
General attributes — J4 Moment1700/ 320 (Nm)/Inertia (kgm²)
General attributes — J5 Moment1700/ 320 (Nm)/Inertia (kgm²)
General attributes — J6 Moment900/ 230 (Nm)/Inertia (kgm²)
General attributes — Robot footprint771 x 610
Protection — Body standard/optionalIP54/IP56
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
