Технические характеристики
ПроизводительFANUC

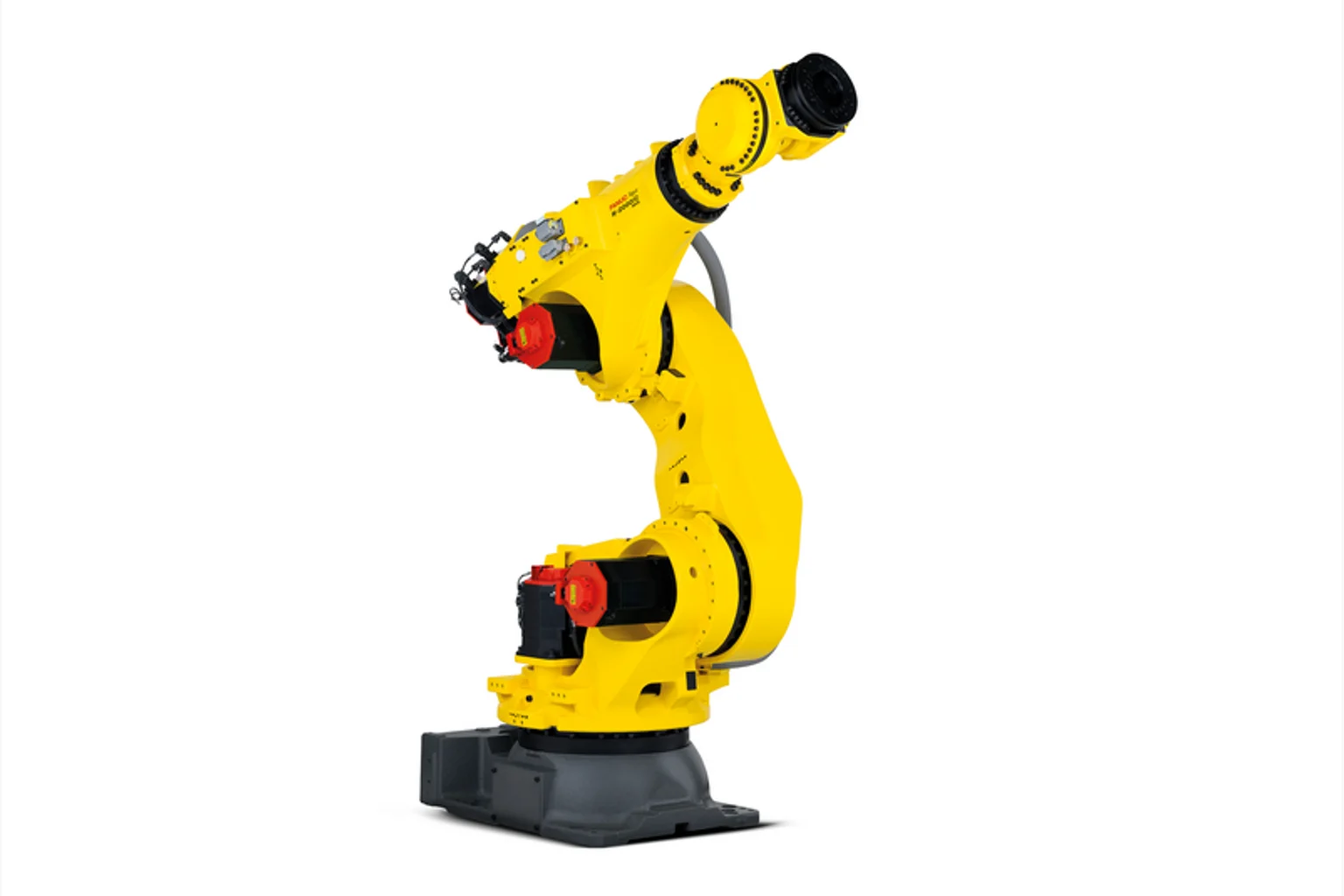

МодельFANUC R-2000iC/190S
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1330
Motion range — J2210 degrees
Motion range — J3340 degrees
Motion range — J4306 degrees
Motion range — J5250
Motion range — J6720
Maximum speed — J1105 (°/s)
Maximum speed — J290 (°/s)
Maximum speed — J3145 (°/s)
Maximum speed — J4120
Maximum speed — J5120 (°/s)
Maximum speed — J6200 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption3.0 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply2
Environment — Acoustic noise level70.5 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload190 kg
General attributes — Robot Reach2040 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.03 mm
General attributes — Mechanical weight1135 kg
General attributes — J4 Moment1200/ 200 (Nm)/Inertia (kgm²)
General attributes — J5 Moment1200/ 200 (Nm)/Inertia (kgm²)
General attributes — J6 Moment630/ 180 (Nm)/Inertia (kgm²)
General attributes — Robot footprint771 x 610
Protection — Body standard/optionalIP54
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
