Технические характеристики
ПроизводительFANUC

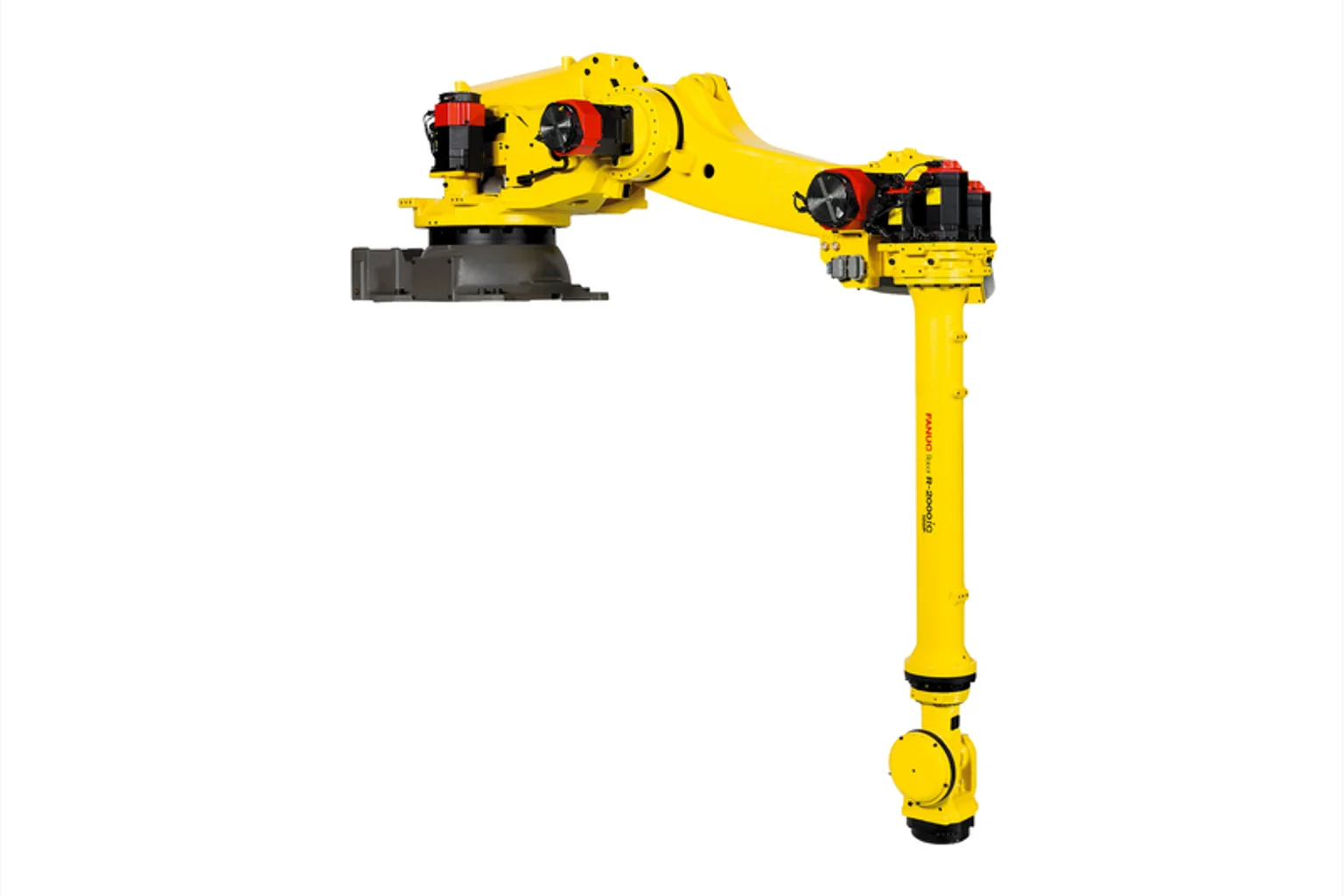

МодельFANUC R-2000iC/100P
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1370
Motion range — J2200 degrees
Motion range — J3375 degrees
Motion range — J4720 degrees
Motion range — J5250
Maximum speed — J1120 (°/s)
Maximum speed — J2100 (°/s)
Maximum speed — J3115 (°/s)
Maximum speed — J4140
Maximum speed — J5140 (°/s)
Maximum speed — J6210 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption2.5 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply2
Environment — Acoustic noise level71.3 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload100 kg
General attributes — Robot Reach3540 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.05 mm
General attributes — Mechanical weight1470 kg
General attributes — J4 Moment1000/ 227 (Nm)/Inertia (kgm²)
General attributes — J5 Moment1000/ 227 (Nm)/Inertia (kgm²)
General attributes — J6 Moment706/ 196 (Nm)/Inertia (kgm²)
General attributes — Robot footprint771 x 610
Protection — Body standard/optionalIP54
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
