Технические характеристики
ПроизводительFANUC

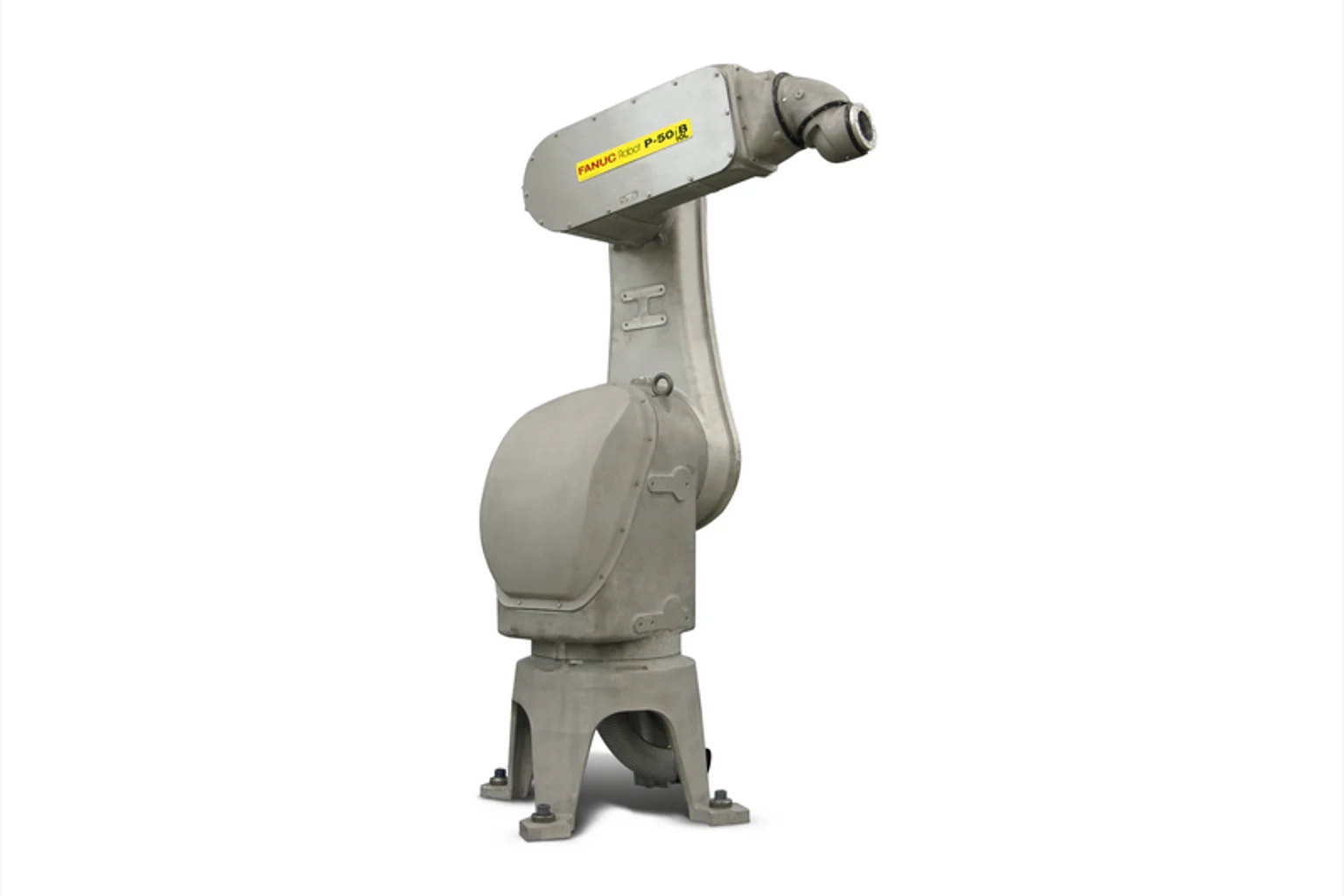

МодельFANUC P-50iB/10L
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1320
Motion range — J2240 degrees
Motion range — J3404 degrees
Motion range — J41080 degrees
Motion range — J51080
Motion range — J61080
Maximum speed — J1140 (°/s)
Maximum speed — J2140 (°/s)
Maximum speed — J3160 (°/s)
Maximum speed — J4375
Maximum speed — J5430 (°/s)
Maximum speed — J6545 (°/s)
Electrical connections — Value (V)200-230 V
Electrical connections — Average power consumption0.8 kW
Environment — Acoustic noise level88.7 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload10 kg
General attributes — Robot Reach1800 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.2 mm
General attributes — Mechanical weight331 kg
General attributes — J4 Moment43.35/ 1.954 (Nm)/Inertia (kgm²)
General attributes — J5 Moment36.86/ 1.413 (Nm)/Inertia (kgm²)
General attributes — J6 Moment4.90/ 0.025 (Nm)/Inertia (kgm²)
General attributes — Robot footprint580 x 560
