Технические характеристики
ПроизводительFANUC

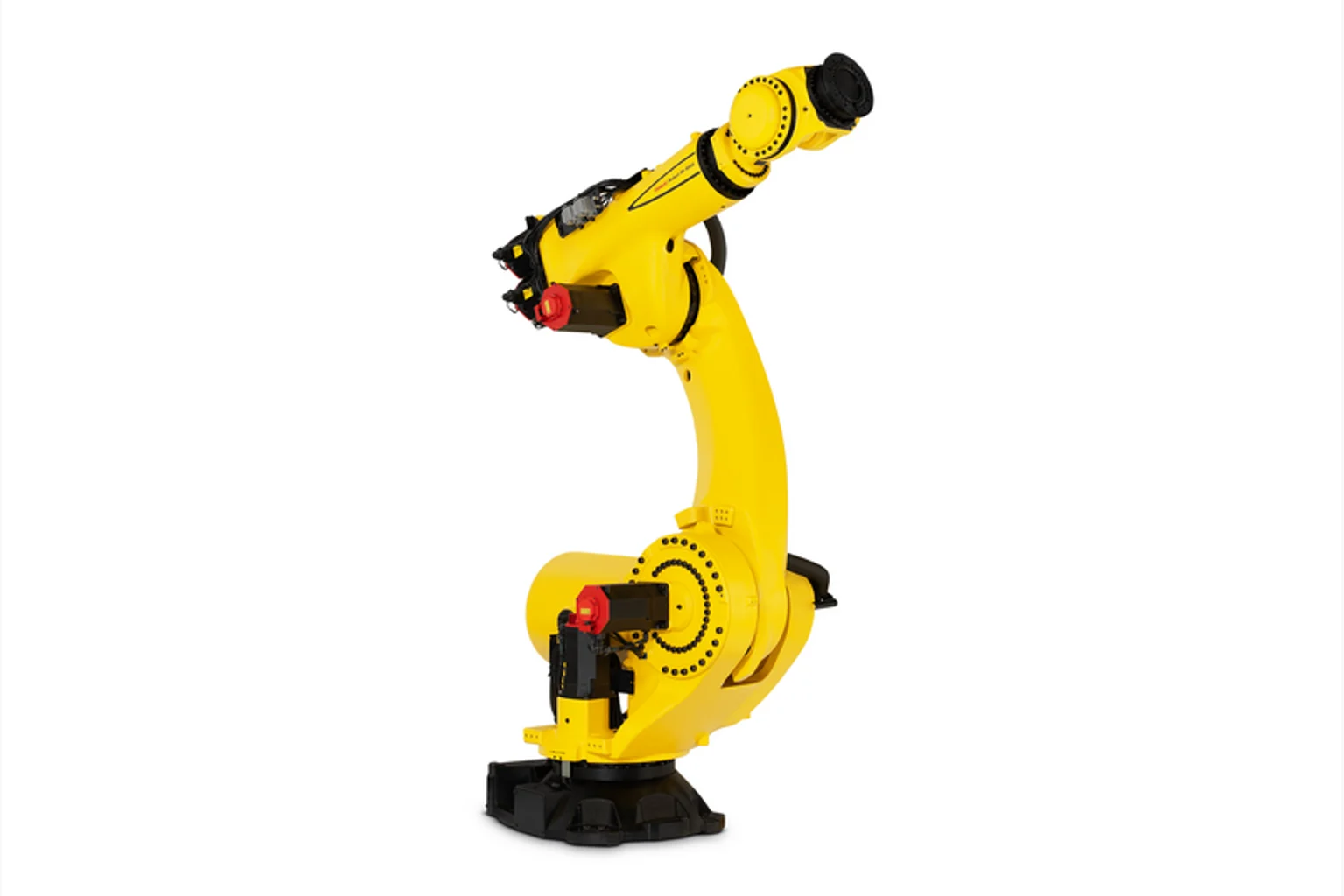

МодельFANUC M-950iA/500
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1370
Motion range — J2150 degrees
Motion range — J3395 degrees
Motion range — J4720 degrees
Motion range — J5244
Motion range — J6720
Maximum speed — J1100 (°/s)
Maximum speed — J280 (°/s)
Maximum speed — J380 (°/s)
Maximum speed — J4110
Maximum speed — J5110 (°/s)
Maximum speed — J6170 (°/s)
Electrical connections — Value (V)380-575 V
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply2
Environment — Acoustic noise level71.3 dB
Environment — Ambient Temperature0-45
General attributes — Payloadmore than 200
General attributes — Robot Payload500 kg
General attributes — Robot Reach2830 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.08 mm
General attributes — Mechanical weight2500 kg
General attributes — J4 Moment3420/ 1100 (Nm)/Inertia (kgm²)
General attributes — J5 Moment3420/ 1100 (Nm)/Inertia (kgm²)
General attributes — J6 Moment1850/ 445 (Nm)/Inertia (kgm²)
General attributes — Robot footprint884 x 783
Protection — Body standard/optionalIP54
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
