Технические характеристики
ПроизводительFANUC

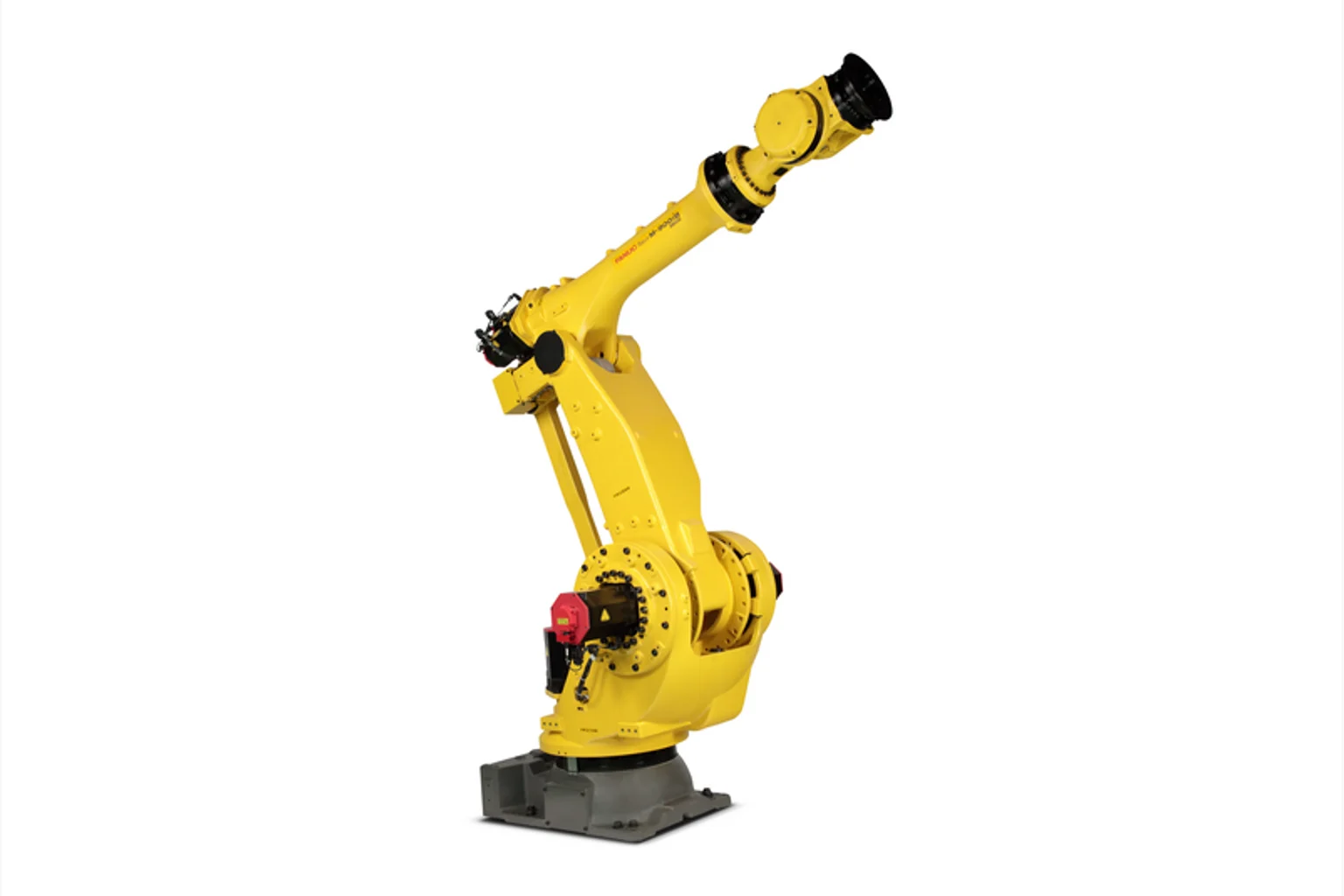

МодельFANUC M-900iB/360E
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1370
Motion range — J2151 degrees
Motion range — J3224 degrees
Motion range — J4720 degrees
Motion range — J5250
Motion range — J6720
Maximum speed — J1100 (°/s)
Maximum speed — J2105 (°/s)
Maximum speed — J3100 (°/s)
Maximum speed — J4110
Maximum speed — J5110 (°/s)
Maximum speed — J6180 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption3 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply2
Environment — Acoustic noise level73.9 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload360 kg
General attributes — Robot Reach2655 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.1 mm
General attributes — Mechanical weight1540 kg
General attributes — J4 Moment2330/ 500 (Nm)/Inertia (kgm²)
General attributes — J5 Moment2330/ 500 (Nm)/Inertia (kgm²)
General attributes — J6 Moment1280/ 360 (Nm)/Inertia (kgm²)
General attributes — Robot footprint830 x 610
Protection — Body standard/optionalIP54/IP56
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
