Технические характеристики
ПроизводительFANUC

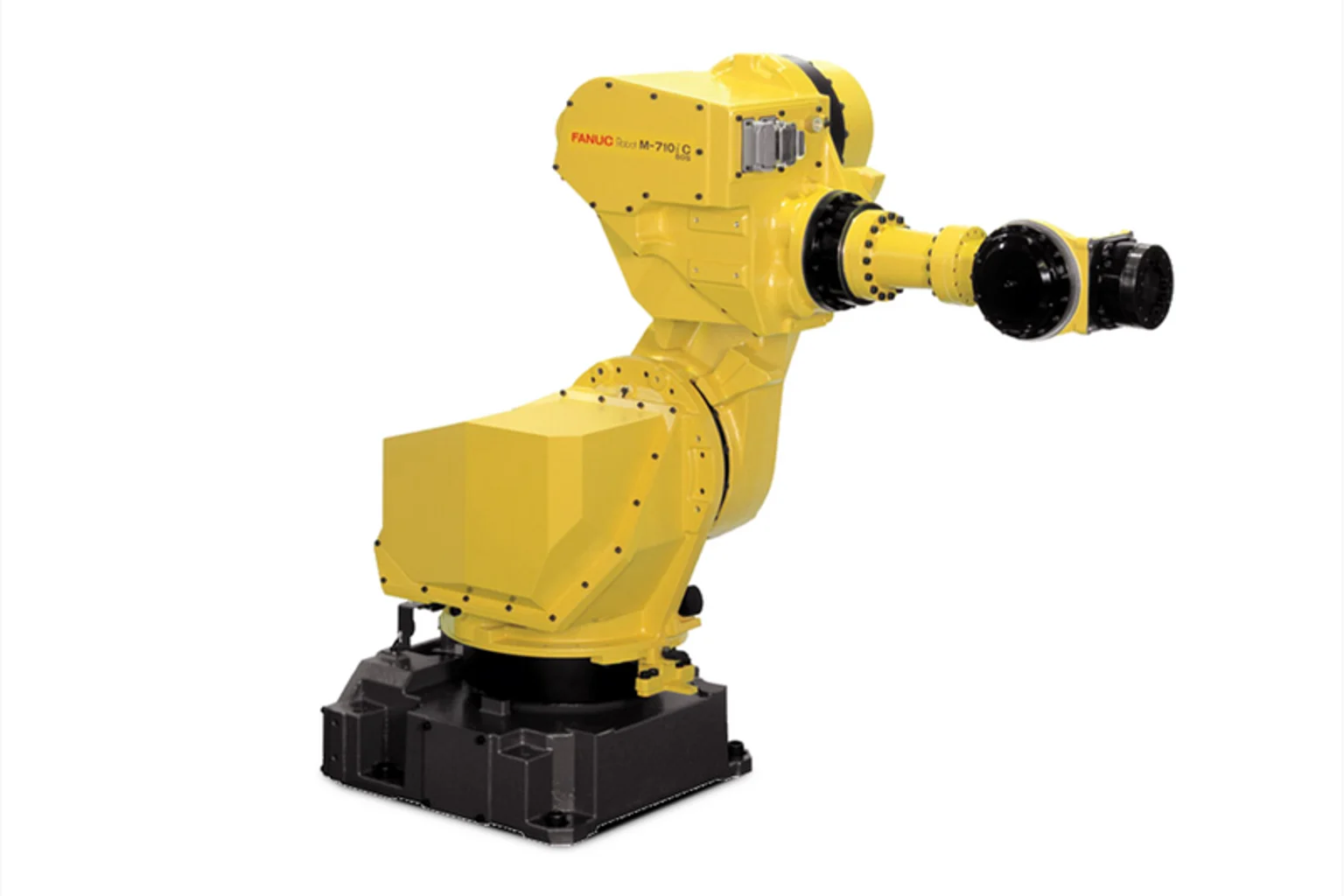

МодельFANUC M-710iC/50S
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1360
Motion range — J2169 degrees
Motion range — J3376 degrees
Motion range — J4720 degrees
Motion range — J5250
Motion range — J6720
Maximum speed — J1175 (°/s)
Maximum speed — J2175 (°/s)
Maximum speed — J3175 (°/s)
Maximum speed — J4250
Maximum speed — J5250 (°/s)
Maximum speed — J6355 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption2.5 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply1
Environment — Acoustic noise level71.3 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload50 kg
General attributes — Robot Reach1359 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.04 mm
General attributes — Mechanical weight545 kg
General attributes — J4 Moment206/ 28 (Nm)/Inertia (kgm²)
General attributes — J5 Moment206/ 28 (Nm)/Inertia (kgm²)
General attributes — J6 Moment127/ 11 (Nm)/Inertia (kgm²)
General attributes — Robot footprint535 x 550
Protection — Body standard/optionalIP54/IP67
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
