Технические характеристики
ПроизводительFANUC

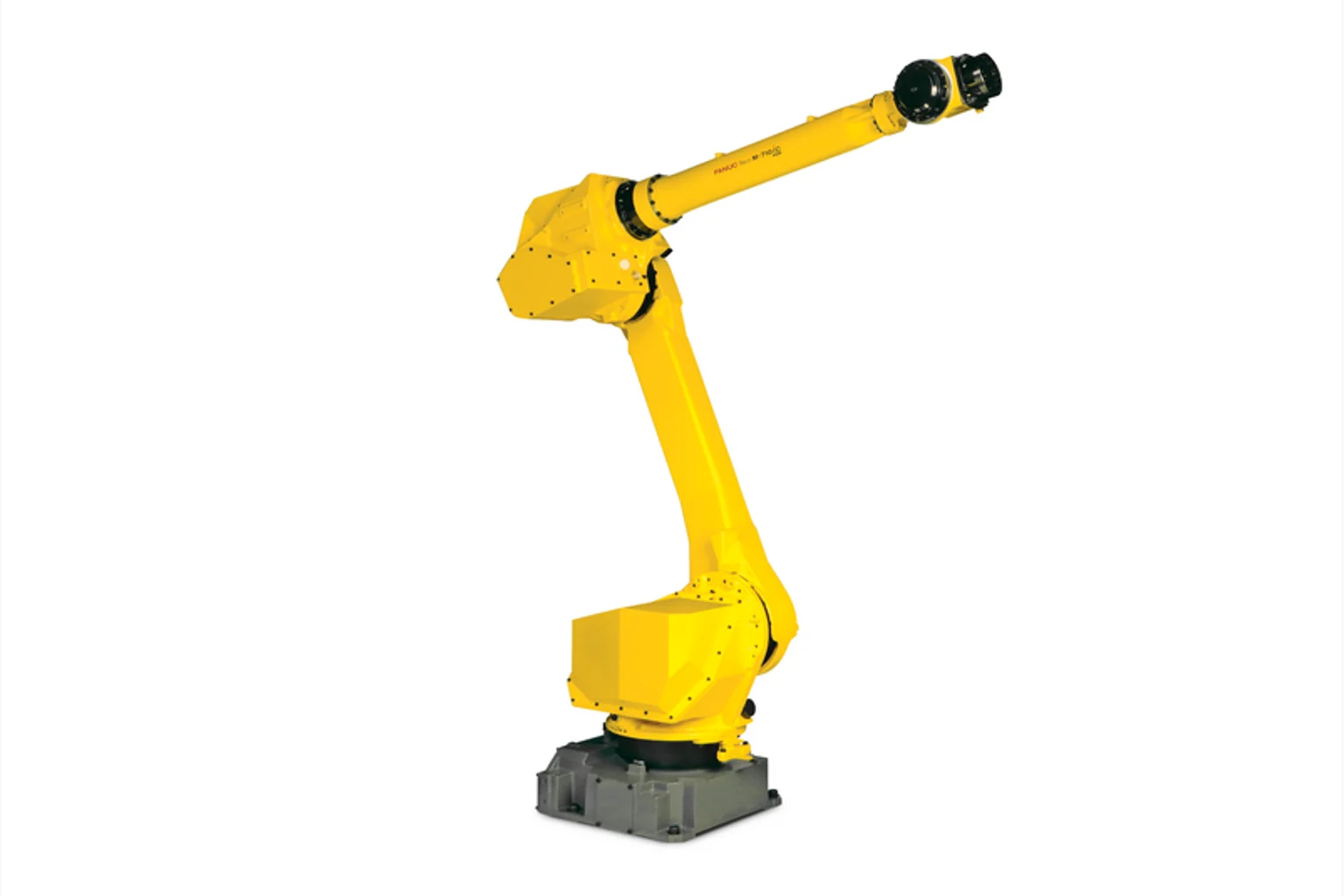

МодельFANUC M-710iC/45M
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1360
Motion range — J2225 degrees
Motion range — J3440 degrees
Motion range — J4800 degrees
Motion range — J5250
Motion range — J6800
Maximum speed — J1180 (°/s)
Maximum speed — J2180 (°/s)
Maximum speed — J3180 (°/s)
Maximum speed — J4250
Maximum speed — J5250 (°/s)
Maximum speed — J6360 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption2.5 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply1
Environment — Acoustic noise level71.3 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload45 kg
General attributes — Robot Reach2606 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.06 mm
General attributes — Mechanical weight570 kg
General attributes — J4 Moment206/ 28 (Nm)/Inertia (kgm²)
General attributes — J5 Moment206/ 28 (Nm)/Inertia (kgm²)
General attributes — J6 Moment127/ 20 (Nm)/Inertia (kgm²)
General attributes — Robot footprint535 x 550
Protection — Body standard/optionalIP54/IP67
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
