Технические характеристики
ПроизводительFANUC

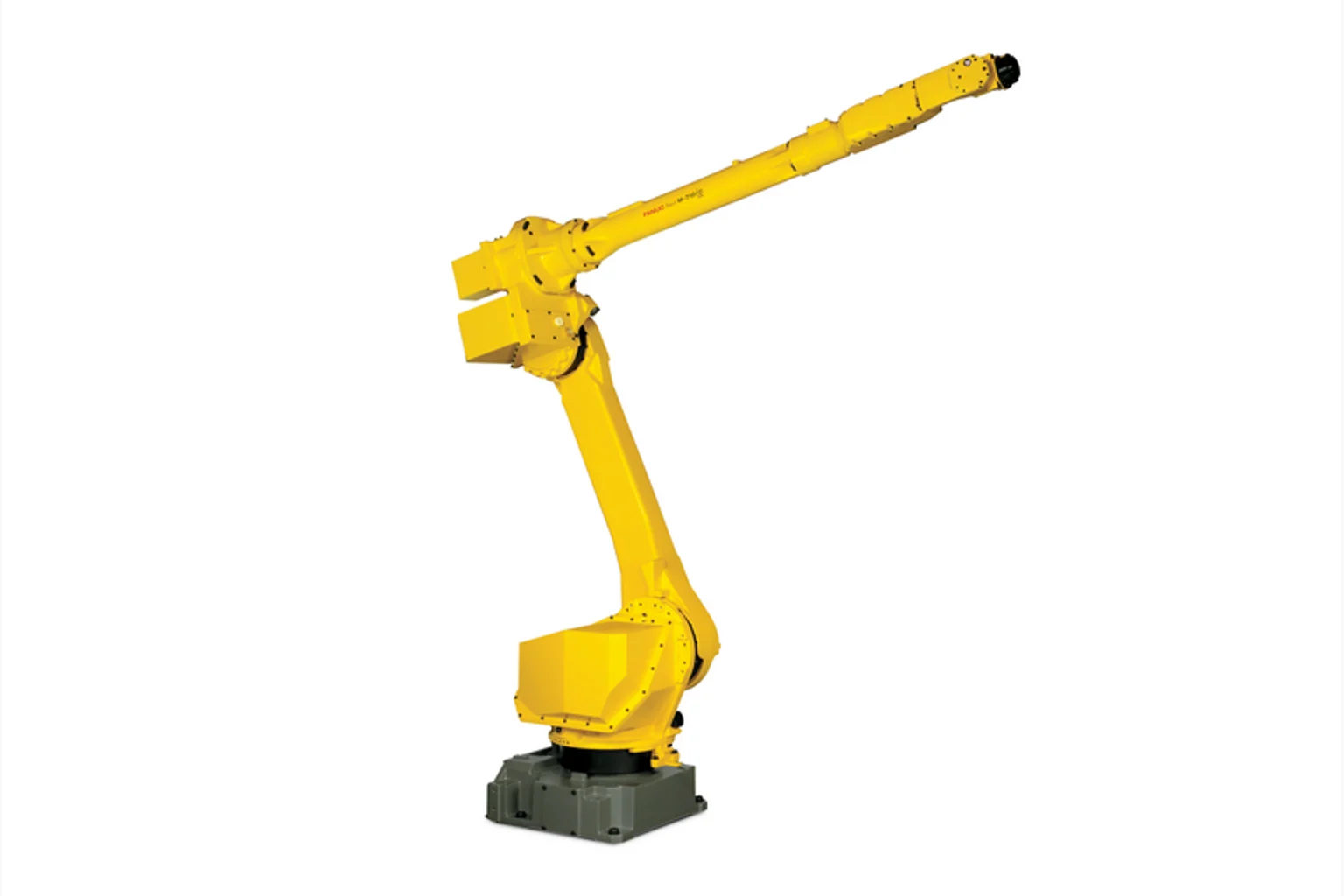

МодельFANUC M-710iC/12L
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1360
Motion range — J2225 degrees
Motion range — J3434 degrees
Motion range — J4400 degrees
Motion range — J5380
Motion range — J6720
Maximum speed — J1180 (°/s)
Maximum speed — J2180 (°/s)
Maximum speed — J3180 (°/s)
Maximum speed — J4400
Maximum speed — J5430 (°/s)
Maximum speed — J6630 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption2.5 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply1
Environment — Acoustic noise level71.3 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload12 kg
General attributes — Robot Reach3123 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.09 mm
General attributes — Mechanical weight540 kg
General attributes — J4 Moment22.0/ 0.65 (Nm)/Inertia (kgm²)
General attributes — J5 Moment22.0/ 0.65 (Nm)/Inertia (kgm²)
General attributes — J6 Moment9.8/ 0.17 (Nm)/Inertia (kgm²)
General attributes — Robot footprint535 x 550
Protection — Body standard/optionalIP54/IP67
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
