Технические характеристики
ПроизводительFANUC

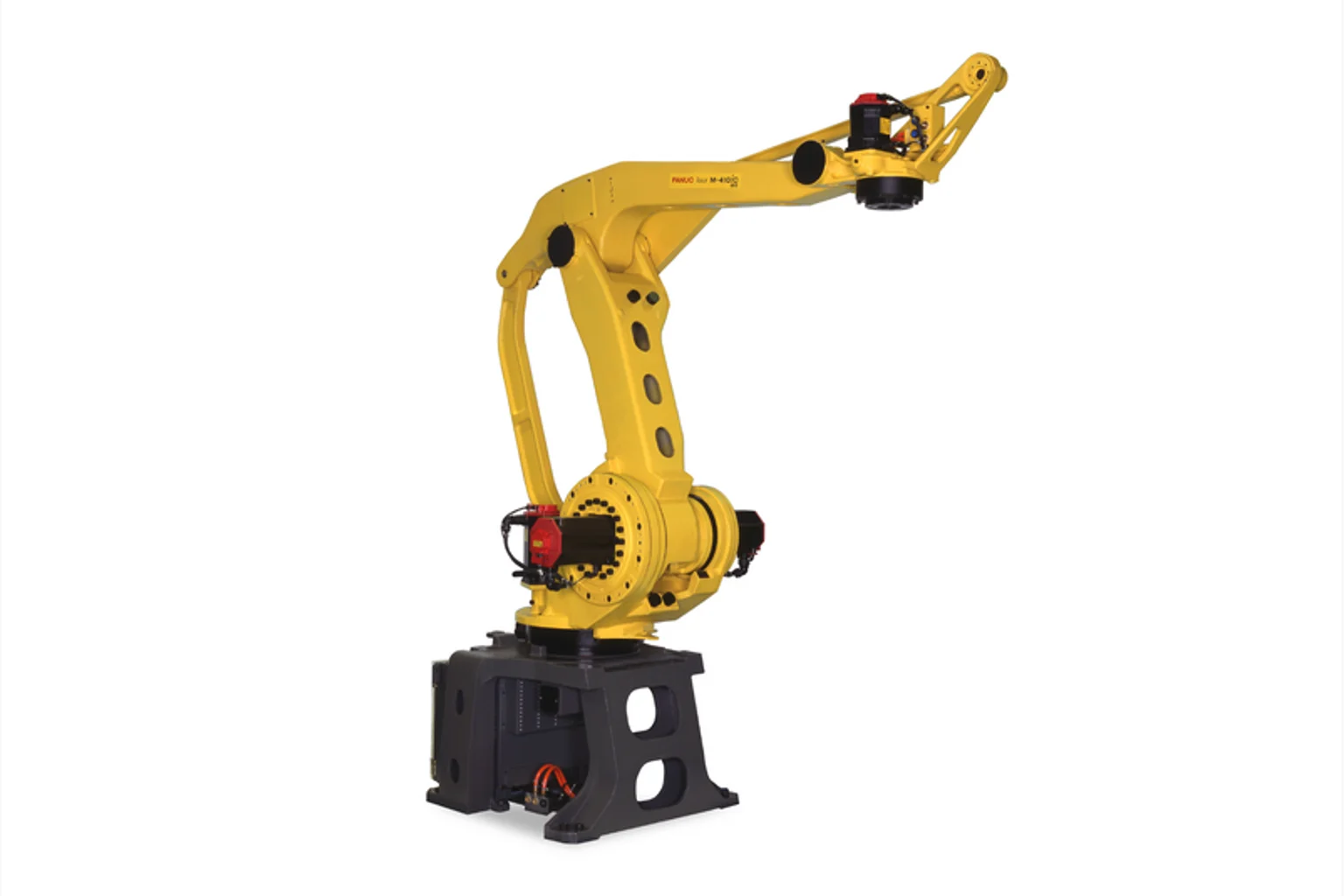

МодельFANUC M-410iC/185
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1360
Motion range — J2144 degrees
Motion range — J3136 degrees
Motion range — J4720 degrees
Maximum speed — J190 (°/s)
Maximum speed — J2100 (°/s)
Maximum speed — J3110 (°/s)
Maximum speed — J4195
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption3 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply2
Environment — Acoustic noise level75.3 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload185 kg
General attributes — Robot Reach3143 mm
General attributes — Axes4
General attributes — Repeatability (ISO9283)±0.05 mm
General attributes — Mechanical weight1600 kg
General attributes — J4 Moment155/ (Nm)/Inertia (kgm²)
General attributes — J5 Moment(Nm)/Inertia (kgm²)
General attributes — J6 Moment(Nm)/Inertia (kgm²)
General attributes — Robot footprint1094 x 945 (806 x 610)
Protection — Body standard/optionalIP54
Protection — Wrist & J3 arm standard/optionalIP54
Ценапо запросу
