Технические характеристики
ПроизводительFANUC

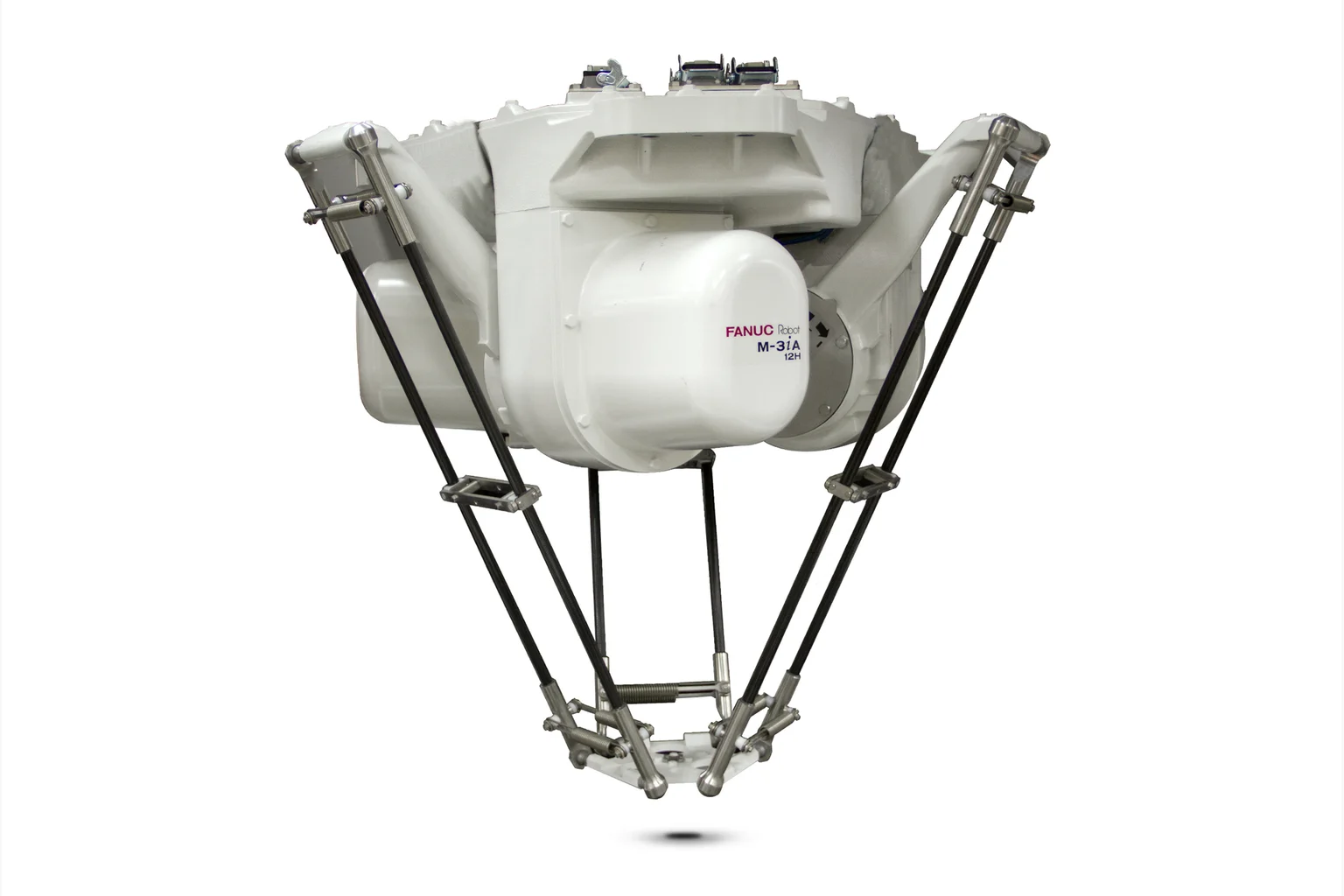

МодельFANUC M-3iA/12H
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Electrical connections — Value (V)200-230 V
Electrical connections — Average power consumption2.5 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Environment — Acoustic noise level79.2 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload12 kg
General attributes — Robot Reach1350 mm
General attributes — Axes3
General attributes — Repeatability (ISO9283)±0.03 mm
General attributes — Mechanical weight155 kg
General attributes — J4 Moment*4/ (Nm)/Inertia (kgm²)
General attributes — J5 Moment(Nm)/Inertia (kgm²)
General attributes — J6 Moment(Nm)/Inertia (kgm²)
General attributes — Robot footprintØ 860
Protection — Body standard/optionalIP67
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
