Технические характеристики
ПроизводительFANUC

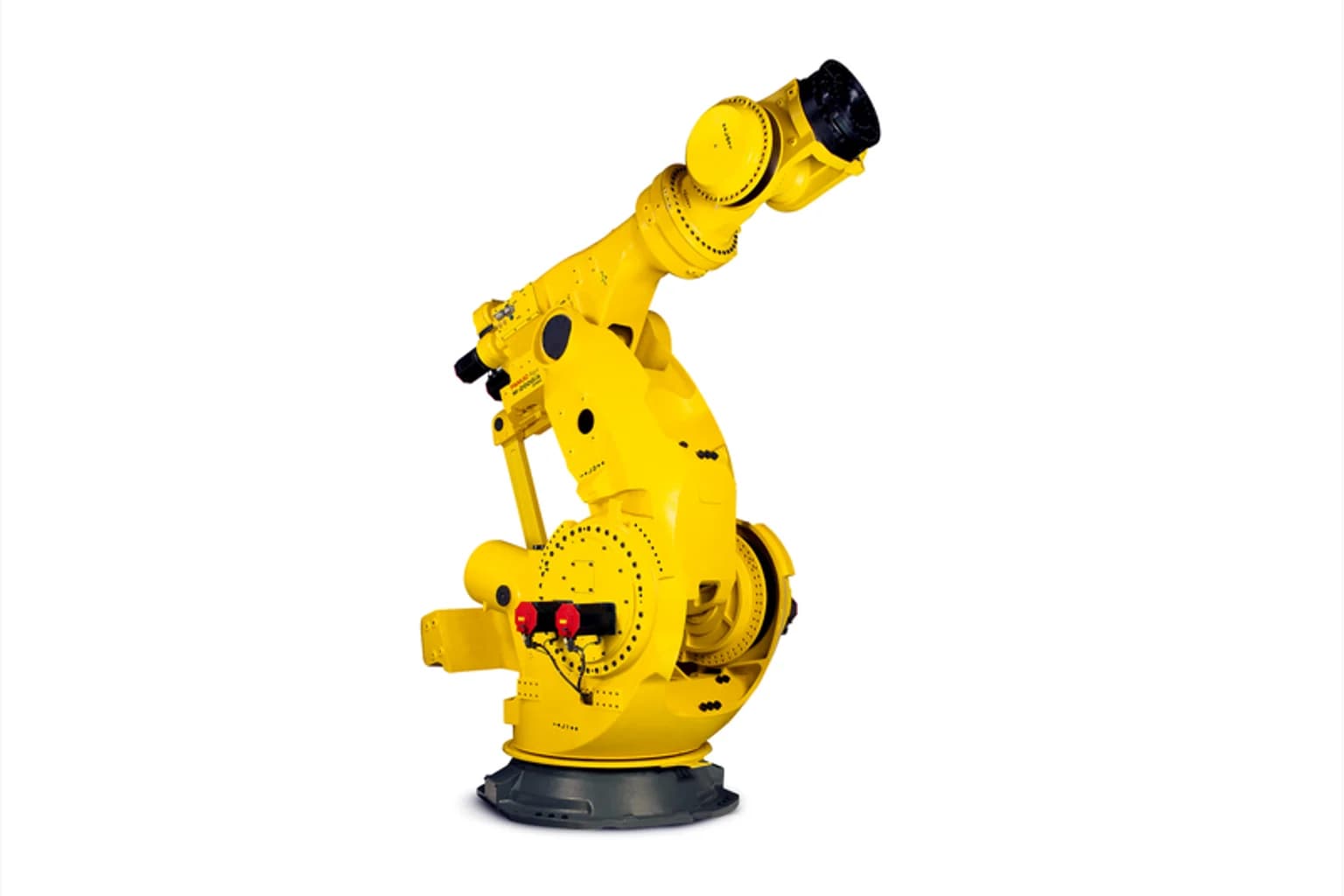

МодельFANUC M-2000iA/2300
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1330
Motion range — J2160 degrees
Motion range — J3165 degrees
Motion range — J4720 degrees
Motion range — J5240
Motion range — J6720
Maximum speed — J120 (°/s)
Maximum speed — J214 (°/s)
Maximum speed — J314 (°/s)
Maximum speed — J418
Maximum speed — J518 (°/s)
Maximum speed — J640 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption8 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply2
Environment — Acoustic noise level72.8 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload2300 kg
General attributes — Robot Reach3734 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.18 mm
General attributes — Mechanical weight11000 kg
General attributes — J4 Moment29400/ 7500 (Nm)/Inertia (kgm²)
General attributes — J5 Moment29400/ 7500 (Nm)/Inertia (kgm²)
General attributes — J6 Moment8820/ 5500 (Nm)/Inertia (kgm²)
General attributes — Robot footprint1540 x 1480
Protection — Body standard/optionalIP54/IP56
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
