Технические характеристики
ПроизводительFANUC

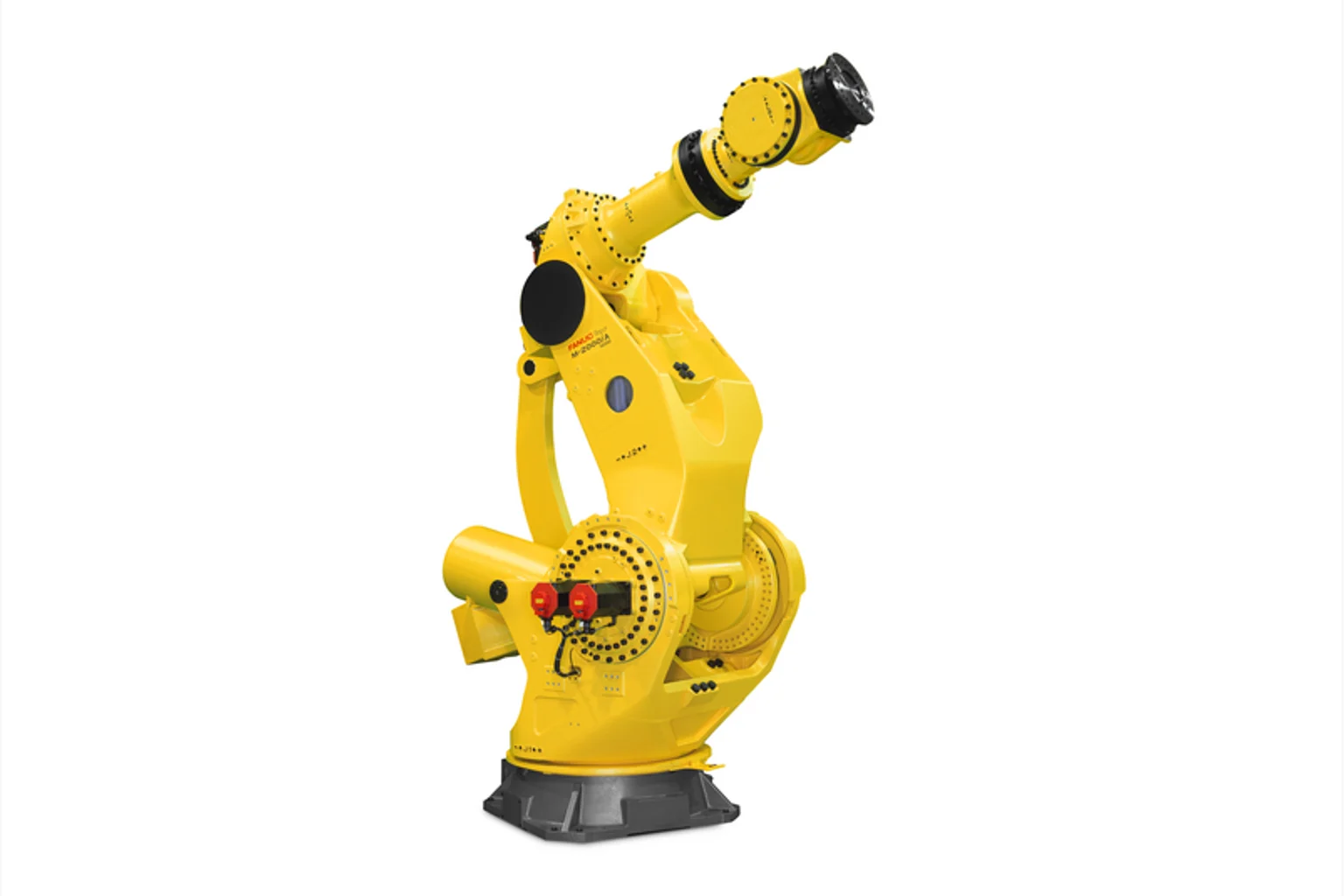

МодельFANUC M-2000iA/1200
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1330
Motion range — J2160 degrees
Motion range — J3165 degrees
Motion range — J4720 degrees
Motion range — J5240
Motion range — J6720
Maximum speed — J145 (°/s)
Maximum speed — J330 (°/s)
Maximum speed — J450
Maximum speed — J550 (°/s)
Maximum speed — J670 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption8 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply2
Environment — Acoustic noise level72.8 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload1200 kg
General attributes — Robot Reach3734 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.18 mm
General attributes — Mechanical weight8600 kg
General attributes — J4 Moment14700/ 2989 (Nm)/Inertia (kgm²)
General attributes — J5 Moment14700/ 2989 (Nm)/Inertia (kgm²)
General attributes — J6 Moment4900/ 2195 (Nm)/Inertia (kgm²)
General attributes — Robot footprint1350 x 1210
Protection — Body standard/optionalIP54/IP56
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
