Технические характеристики
ПроизводительFANUC

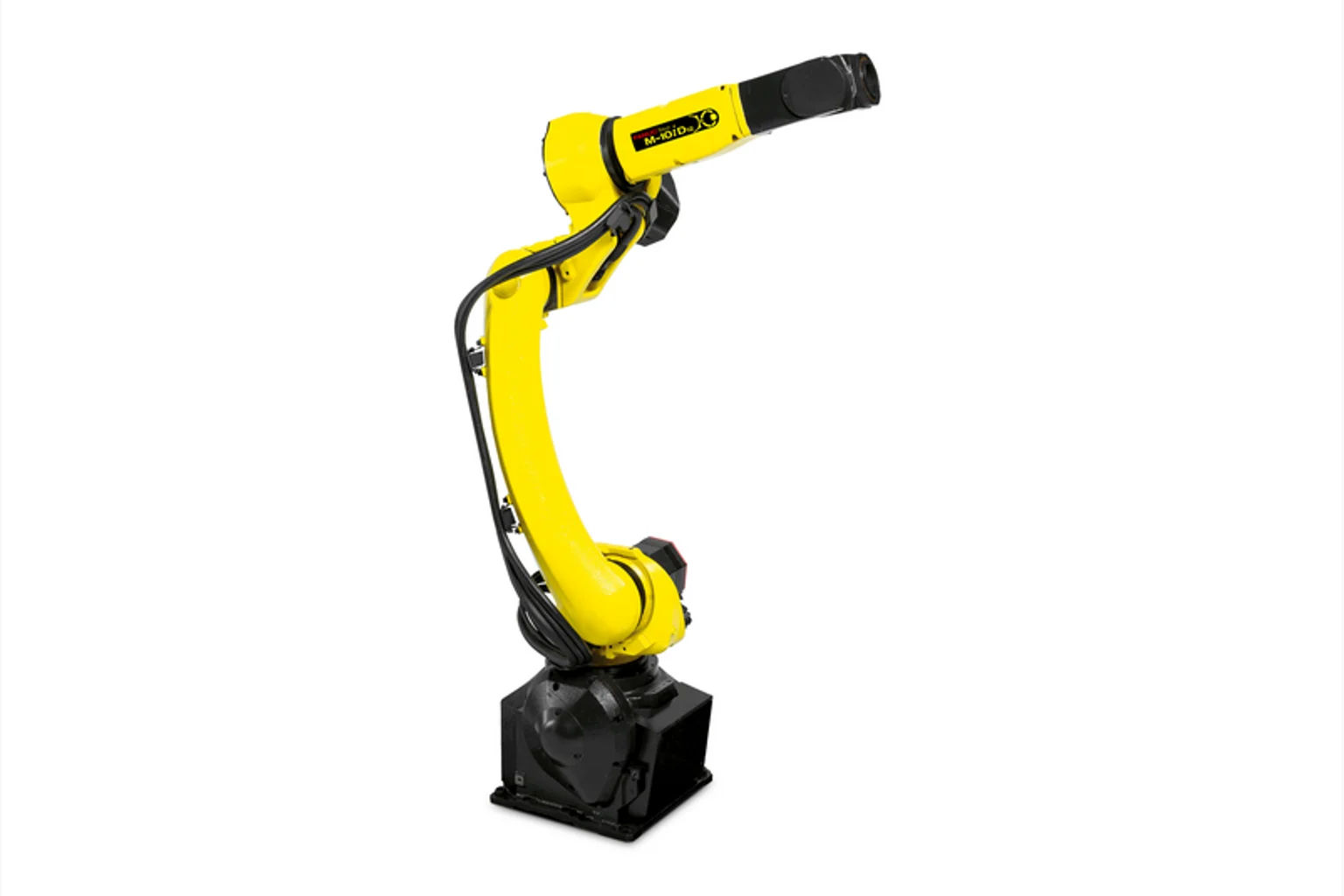

МодельFANUC M-10iD/12
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1340 (370)
Motion range — J2235 degrees
Motion range — J3455 degrees
Motion range — J4380 degrees
Motion range — J5240
Motion range — J6540
Maximum speed — J1260 (°/s)
Maximum speed — J2240 (°/s)
Maximum speed — J3260 (°/s)
Maximum speed — J4430
Maximum speed — J5450 (°/s)
Maximum speed — J6720 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption1 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply1
Environment — Acoustic noise level70 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload12 kg
General attributes — Robot Reach1441 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.02 mm
General attributes — Mechanical weight145 kg
General attributes — J4 Moment26.0/ 0.90 (Nm)/Inertia (kgm²)
General attributes — J5 Moment26.0/ 0.90 (Nm)/Inertia (kgm²)
General attributes — J6 Moment11.0/ 0.30 (Nm)/Inertia (kgm²)
General attributes — Robot footprint343 x 343
Protection — Body standard/optionalIP54/IP65
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
