Технические характеристики
ПроизводительFANUC

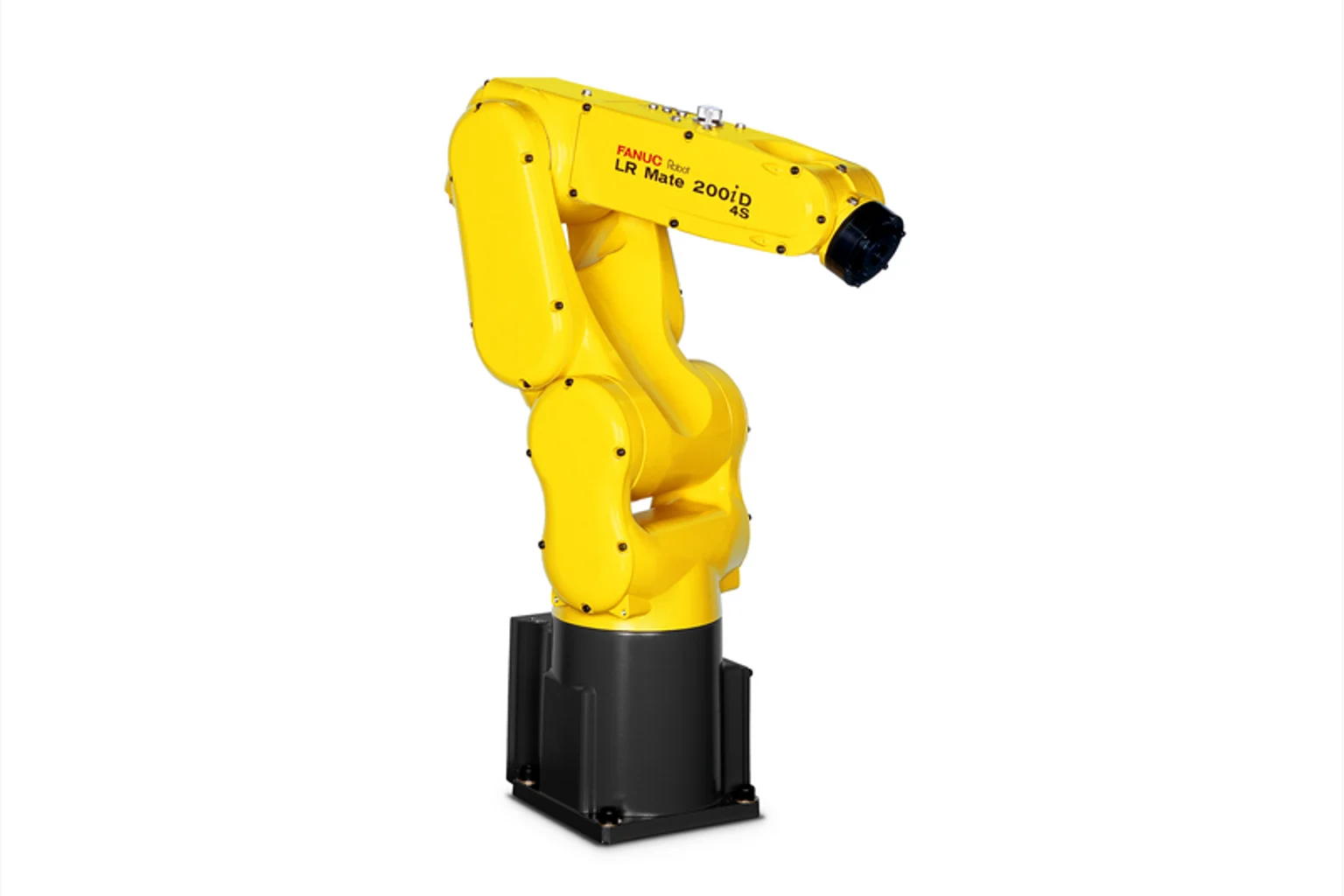

МодельFANUC LR Mate 200iD/4S
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1360
Motion range — J2230 degrees
Motion range — J3402 degrees
Motion range — J4380 degrees
Motion range — J5240
Motion range — J6720
Maximum speed — J1460 (°/s)
Maximum speed — J2460 (°/s)
Maximum speed — J3520 (°/s)
Maximum speed — J4560
Maximum speed — J5560 (°/s)
Maximum speed — J6900 (°/s)
Electrical connections — Value (V)200-230 V
Electrical connections — Average power consumption0.5 kW
Integrated Services — Integrated signals on upper arm In/Out6/2
Integrated Services — Integrated air supply1
Environment — Acoustic noise level64.7 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload4 kg
General attributes — Robot Reach550 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.01 mm
General attributes — Mechanical weight20 kg
General attributes — Maximum linear speed4000 mm/sec
General attributes — J4 Moment8.86/ 0.2 (Nm)/Inertia (kgm²)
General attributes — J5 Moment8.86/ 0.2 (Nm)/Inertia (kgm²)
General attributes — J6 Moment4.9/ 0.067 (Nm)/Inertia (kgm²)
General attributes — Robot footprint160 x 160
Ценапо запросу
