Технические характеристики
ПроизводительFANUC

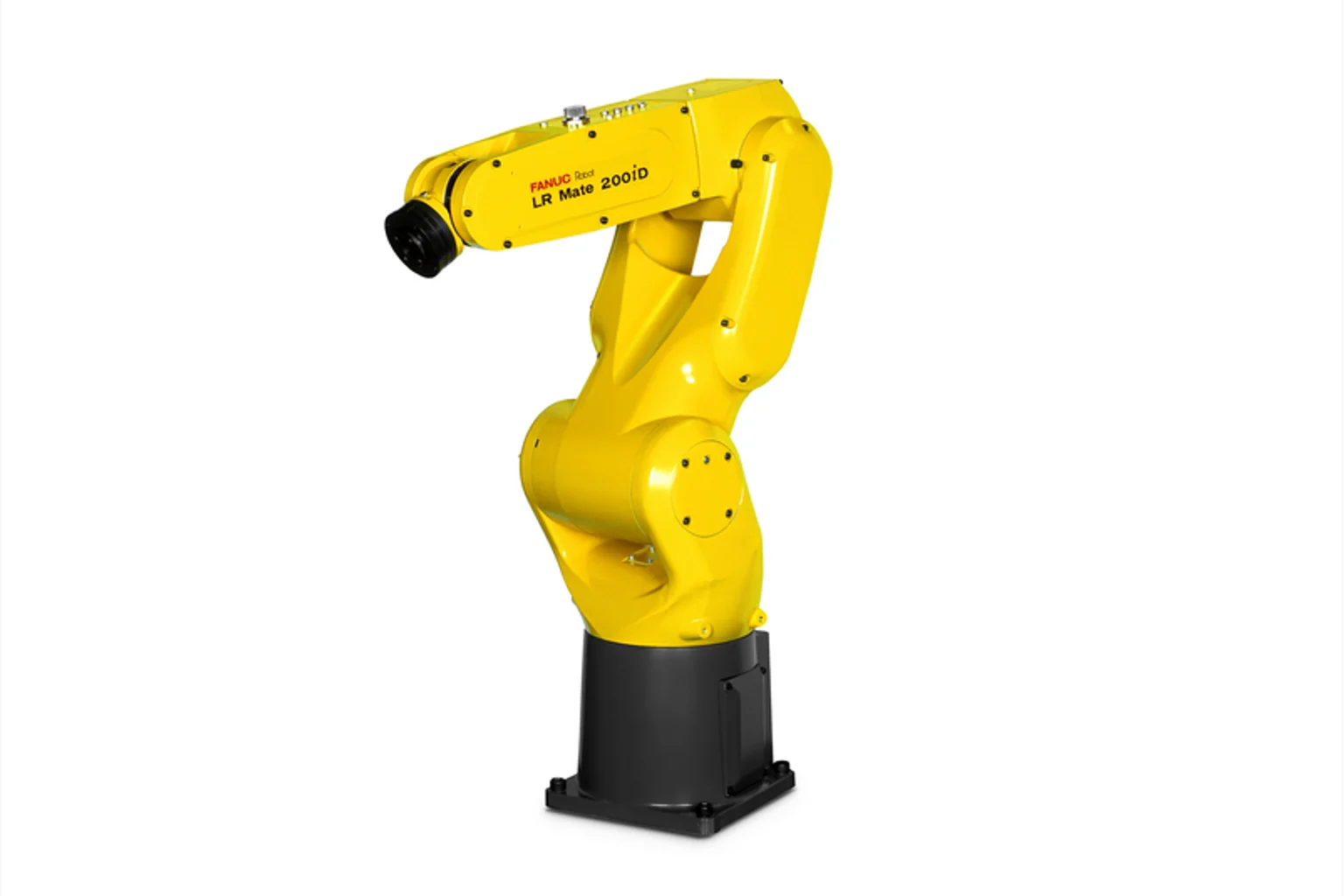

МодельFANUC LR Mate 200iD
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1360
Motion range — J2245 degrees
Motion range — J3420 degrees
Motion range — J4380 degrees
Motion range — J5250
Motion range — J6720
Maximum speed — J1450 (°/s)
Maximum speed — J2380 (°/s)
Maximum speed — J3520 (°/s)
Maximum speed — J4550
Maximum speed — J5545 (°/s)
Maximum speed — J61000 (°/s)
Electrical connections — Value (V)200-230 V
Electrical connections — Average power consumption0.5 kW
Integrated Services — Integrated signals on upper arm In/Out6/2
Integrated Services — Integrated air supply1
Environment — Acoustic noise level64.7 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload7 kg
General attributes — Robot Reach717 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.01 mm
General attributes — Mechanical weight25 kg
General attributes — Maximum linear speed4000 mm/sec
General attributes — J4 Moment16.6/ 0.47 (Nm)/Inertia (kgm²)
General attributes — J5 Moment16.6/ 0.47 (Nm)/Inertia (kgm²)
General attributes — J6 Moment9.4/ 0.15 (Nm)/Inertia (kgm²)
General attributes — Robot footprint190 x 190
Protection — Body standard/optionalIP67
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
