Технические характеристики
ПроизводительFANUC

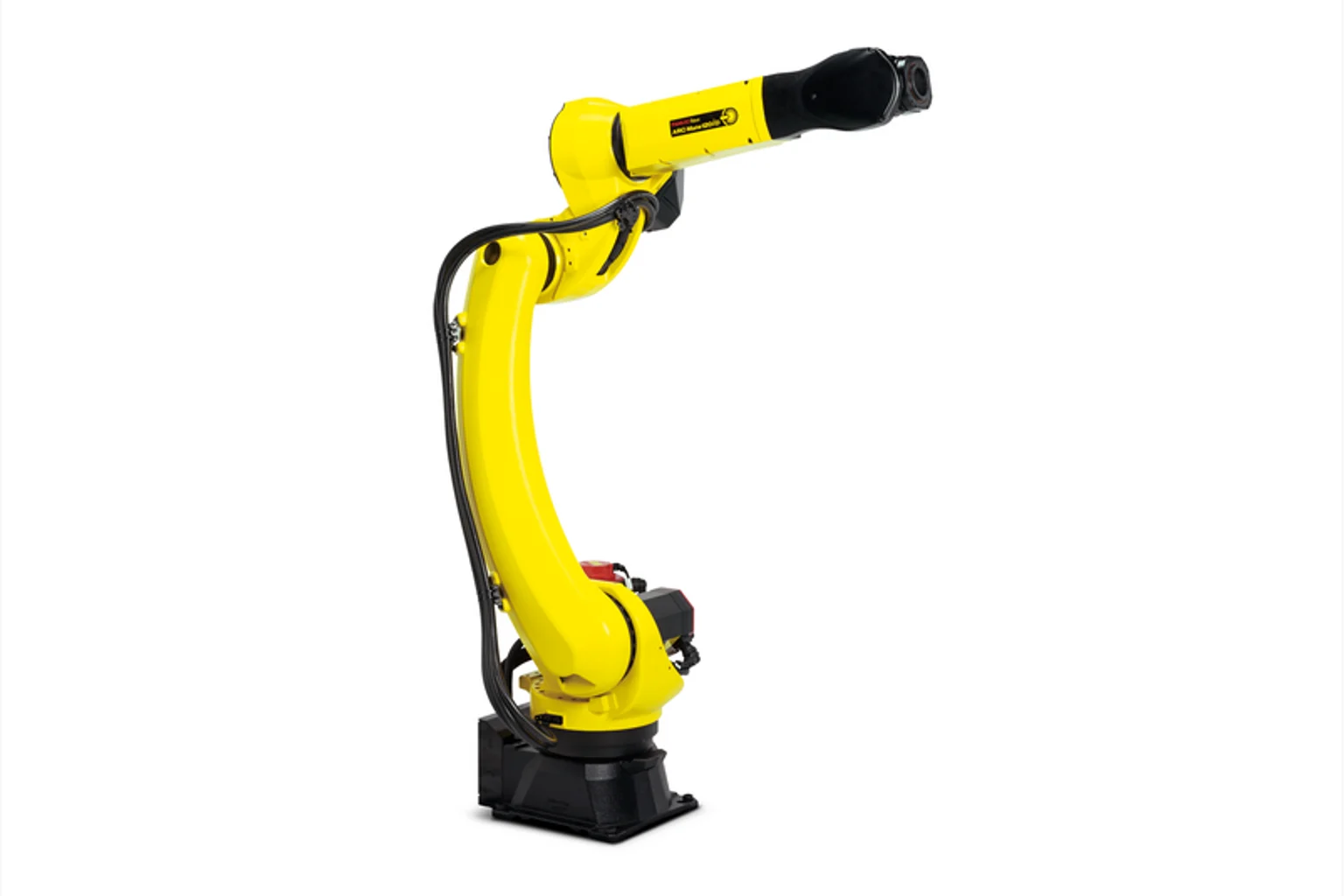

МодельFANUC ARC Mate 120iD
КатегорияСварочные роботы
ControllerR-30iB Plus Controller
Motion range — J1340
Motion range — J2260 degrees
Motion range — J3458 degrees
Motion range — J4400 degrees
Motion range — J5280
Motion range — J6540
Maximum speed — J1210 (°/s)
Maximum speed — J2210 (°/s)
Maximum speed — J3265 (°/s)
Maximum speed — J4420
Maximum speed — J5420 (°/s)
Maximum speed — J6720 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption1 kW
Integrated Services — Integrated signals on upper arm In/Out1/1
Integrated Services — Integrated air supply1
Environment — Acoustic noise level70 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload25 kg
General attributes — Robot Reach1831 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.02 mm
General attributes — Mechanical weight250 kg
General attributes — J4 Moment52.0/ 2.4 (Nm)/Inertia (kgm²)
General attributes — J5 Moment52.0/ 2.4 (Nm)/Inertia (kgm²)
General attributes — J6 Moment32.0/ 1.2 (Nm)/Inertia (kgm²)
General attributes — Robot footprint343 x 343
Ценапо запросу
